Engine BMM 12

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000824

  Manufacturer

  CharacteristicsAxis-Ø (mm): 16
  Displacement (cm³): 12.9

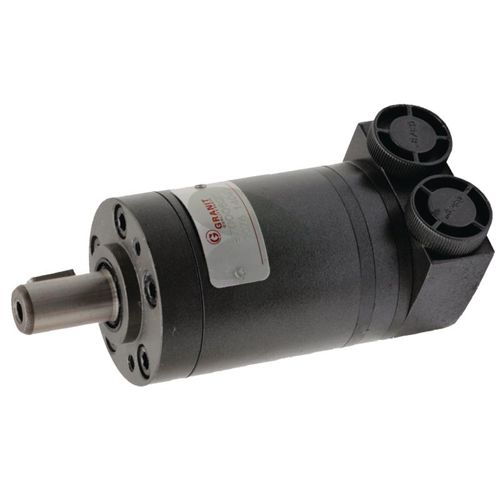

  Motor BMM 12, small and efficient for specific, small applications.

  Shaft-Ø (mm): 16
  Comparison number S.A.M. Hydraulics: BGM S013 SP1
  Leak oil connection: G 1/8"
  Connection: G 3/8"
  Comparison number Danfoss: 151G0004

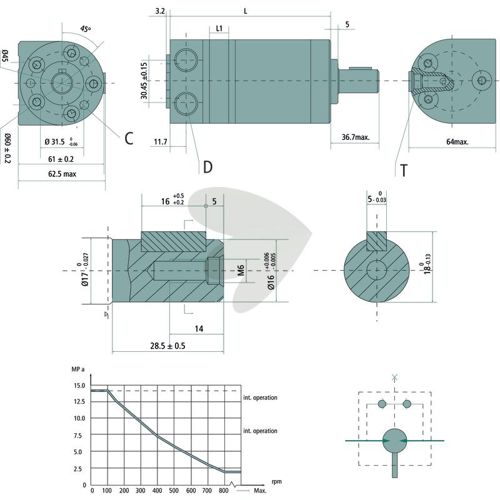

  L (mm): 107
  Input pressure (bar): 175
  Pressure differential (bar): 100
  Max torque (Nm): 16
  Max performance (kW): 2.4
  L1 (mm): 5.5
  Volume (cm³): 12.9
  Max speed (rpm): 1550
  Connection A-B (BSP): 3/8"
  Max volume flow (l/min): 20
