Engine BMM 40

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000827

  Manufacturer

  CharacteristicsAxis-Ø (mm): 16
  Displacement (cm³): 39.8

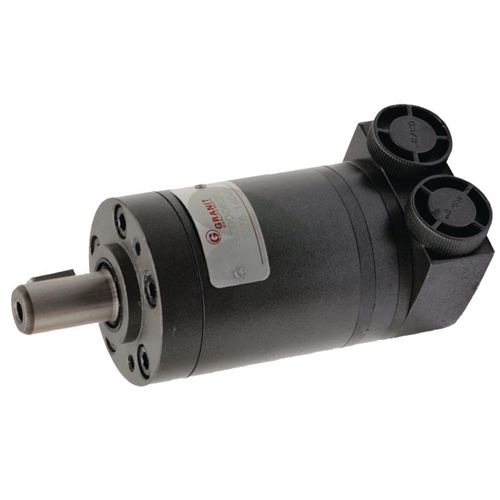

  Motor BMM 40, provides stable performance in small and medium systems.

  Max volume flow (l/min): 20
  Leak oil connection: G 1/8"
  Shaft-Ø (mm): 16
  Pressure differential (bar): 90
  Input pressure (bar): 175
  L (mm): 118.5
  Max speed (rpm): 500
  Max performance (kW): 2.2
  L1 (mm): 17
  Connection: G 3/8"
  Comparison number S.A.M. Hydraulics: BGM S040 SP1
  Volume (cm³): 39.8
  Connection A-B (BSP): 3/8"
  Max torque (Nm): 45
