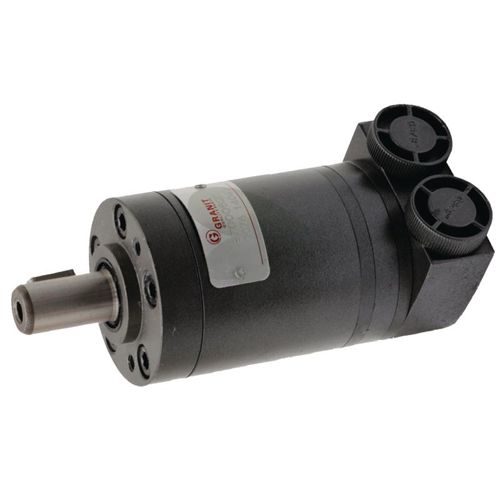

Engine BMM 50

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000828

  Manufacturer

  CharacteristicsShaft diameter (mm): 16
  Displacement (cm³): 50.3

  Motor BMM 50, perfect for meeting higher power needs in small systems.

  Connection: G 3/8"
  Shaft-Ø (mm): 16
  Max torque (Nm): 46
  Max speed (rpm): 400
  Connection A-B (BSP): 3/8"
  Leak oil connection: G 1/8"
  Pressure differential (bar): 70
  Volume (cm³): 50.3

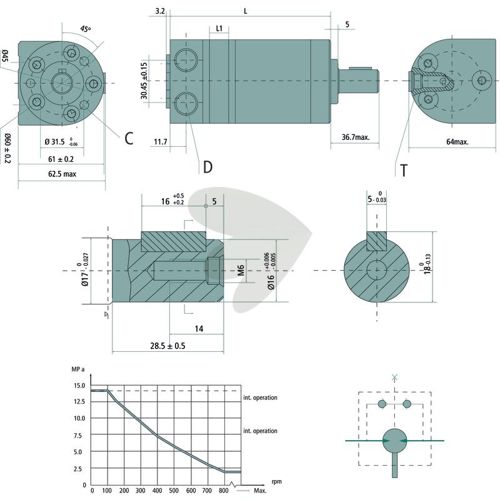

  L (mm): 123
  Max performance (kW): 1.8
  L1 (mm): 21.5
  Comparison number S.A.M. Hydraulics: BGM S050 SP1
  Comparison number Danfoss: 151G0013
  Input pressure (bar): 175
  Max volume flow (l/min): 20
