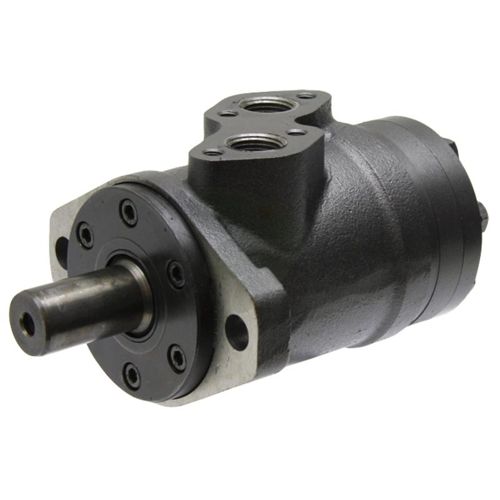

Engine BMP 100

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000833

  Manufacturer

  CharacteristicsShaft diameter (mm): 25
  Displacement (cm³): 96.2

  Motor BMP 100, designed to provide long-lasting efficiency.

  Pressure differential (bar): 140
  L1 (mm): 13
  Shaft-Ø (mm): 25
  Comparison number S.A.M. Hydraulics: BGE 100
  Comparison number Danfoss: 11186725
  Volume (cm³): 96.2
  Max performance (kW): 11.0
  Max volume flow (l/min): 60
  Input pressure (bar): 165
  Connection A-B (BSP): 1/2"
  Leak oil connection: G 1/4"
  Connection: G 1/2"
  L (mm): 143
  Max torque (Nm): 182
  Max speed (rpm): 615
