Engine BMP 50

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000831

  Manufacturer

  CharacteristicsShaft diameter (mm): 25
  Displacement (cm³): 51.7

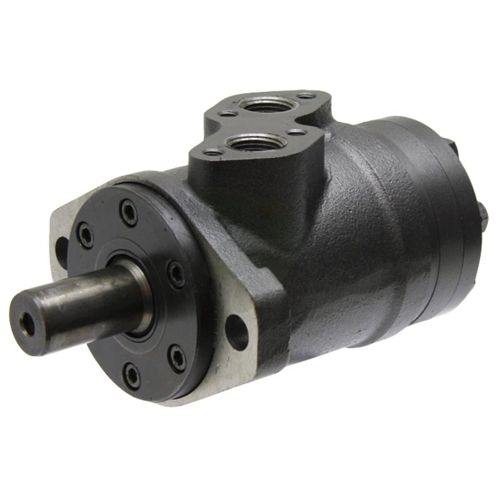

  Motor BMP 50, small but efficient for smaller applications.

  Pressure differential (bar): 140
  Volume (cm³): 51.7
  Input pressure (bar): 165
  Connection A-B (BSP): 1/2"
  Leak oil connection: G 1/4"
  Shaft-Ø (mm): 25
  Comparison number S.A.M. Hydraulics: BGE 50

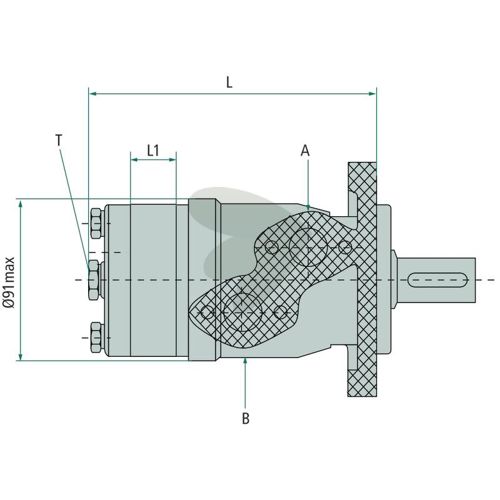

  L (mm): 137
  Max volume flow (l/min): 60
  Connection: G 1/2"
  Comparison number Danfoss: 11185771
  Max torque (Nm): 100
  Max speed (rpm): 1150
  Max performance (kW): 10.0
  L1 (mm): 7
