Engine BMR 160

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87033005

  Manufacturer

  CharacteristicsShaft-Ø (mm): 25.4 mm SAE-6B
  Displacement (cm³): 157.2

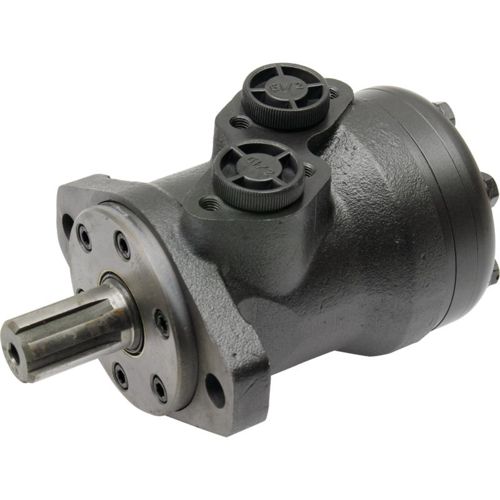

  Motor BMR 160, ideal for demanding applications with high power requirements.

  Pressure difference (bar): 165
  Input pressure (bar): 200
  Maximum speed (rpm): 378 bar
  Connection A-B (BSP): 1/2"
  Connection: G 1/2"

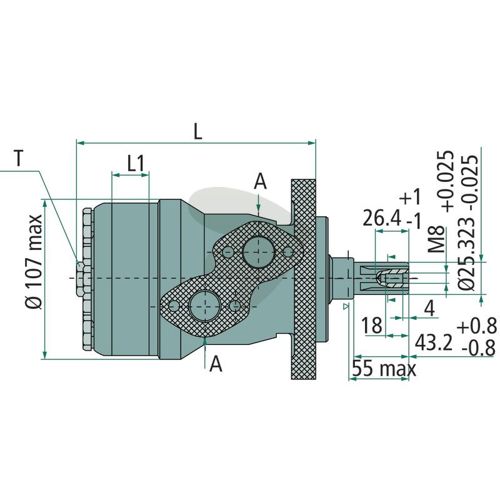

  Length (mm): 161.5
  Volume (cm³): 157.2
  Maximum torque (Nm): 360
  Maximum performance (kW): 12.5
  Maximum flow volume (l/min): 60
  Axle diameter (mm): 1"
  Comparison number Danfoss: 11185570
  Leak oil connection: G 1/4"
  L1 (mm): 30.5
