Engine BMR 315

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000887

  Manufacturer

  CharacteristicsAxle-Ø (mm): 32
  Displacement (cm³): 317.5

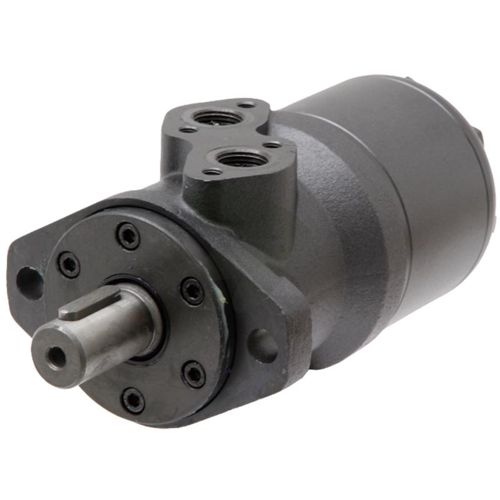

  Reliable Motor BMR 315, optimized for demanding hydraulic applications.

  Axle Ø (mm): 32
  Comparison no. Danfoss: 1510246

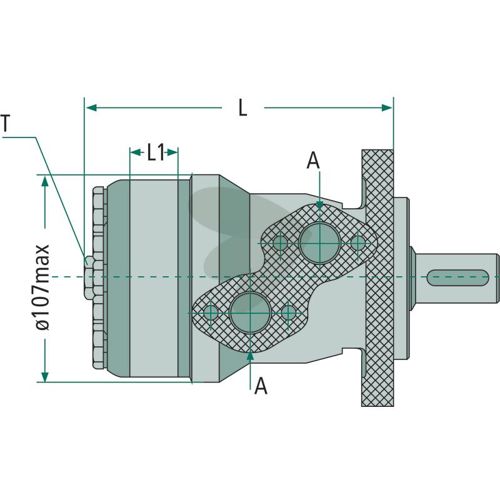

  L (mm): 192
  Volume (cm³): 317.5
  Inlet pressure (bar): 200
  Max flow rate (l/min): 60
  Leakage oil connection: G 1/4"
  L1 (mm): 62
  Connection: G 1/2"
  Max torque (Nm): 550
  Max speed (r/min): 190
  Connection A-B (BSP): 1/2"
  Comparison no. S.A.M. Hydraulics: BG EC32 315
  Pressure difference (bar): 135
  Max power (kW): 9.0
