Engine BMT 200

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87000861

  Manufacturer

  CharacteristicsShaft diameter (mm): 40
  Displacement (cm³): 201.4

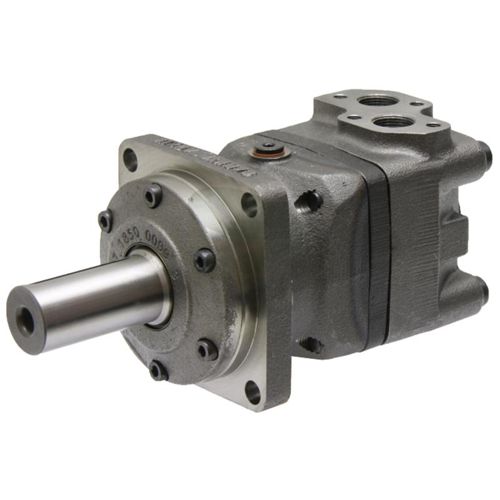

  Motor BMT 200, a reliable solution for efficient hydraulic power transmission.

  Volume flow max. (l/min): 125
  Leak oil connection: G 1/4"
  Axis Ø (mm): 40
  Pressure difference (bar): 200

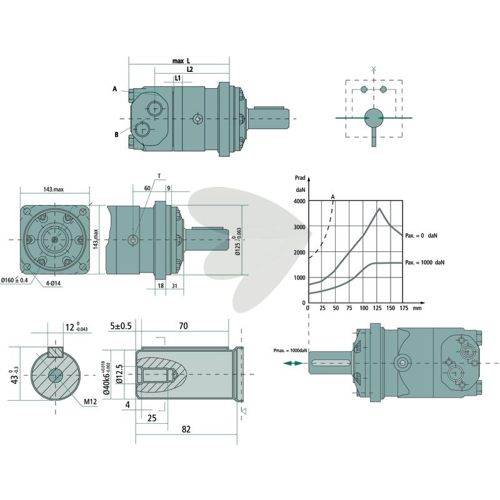

  L2 (mm): 146.5
  Reference no. S.A.M. Hydraulics: HT S 200
  Reference no. Danfoss: 151B3001
  Performance max. (kW): 34.9
  L1 (mm): 21
  Connection: G 3/4"
  L (mm): 197
  Volume (cm³): 201.4
  Torque max. (Nm): 590
  Speed max. (v/min): 625
  Input pressure (bar): 210
  Connection A-B (BSP): 3/4"
