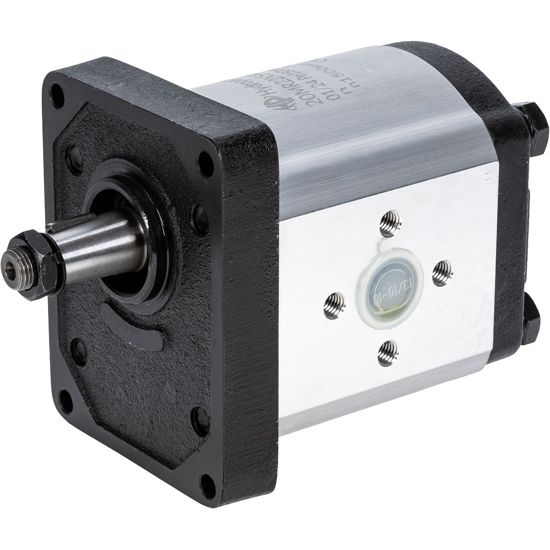

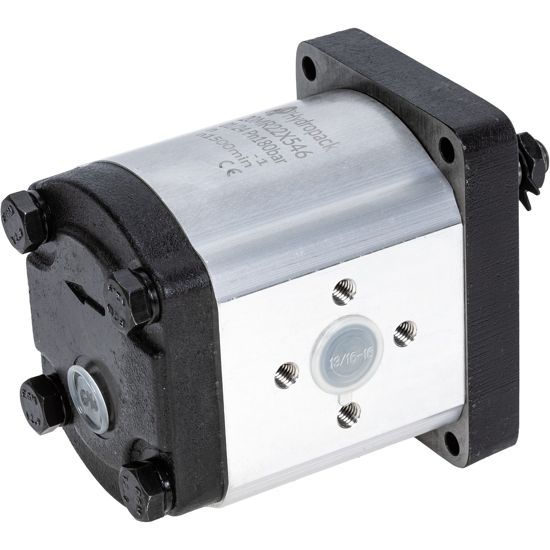

Gear motor 22cc 1/8 shaft

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHM2F22

  Manufacturer

  CharacteristicsSlagvolym: 22 cm³

  - 22 CC kubikvolym, dvs. 1000 rpm speed requires cirka 22 l/min flow
  - Spindelhastighet 650-2100 rpm
  - Max. working pressure 160 bar
  - Tapered shaft with 1:8 kil
  - Fästfläns 71,4 x 96 mm dvs. samma that in 2-the seriess pumps
  - Connection pressure/tank E 39,7 mm / F 19 mm / d M8
  - Läckledning G 1/4" bakom motorn
