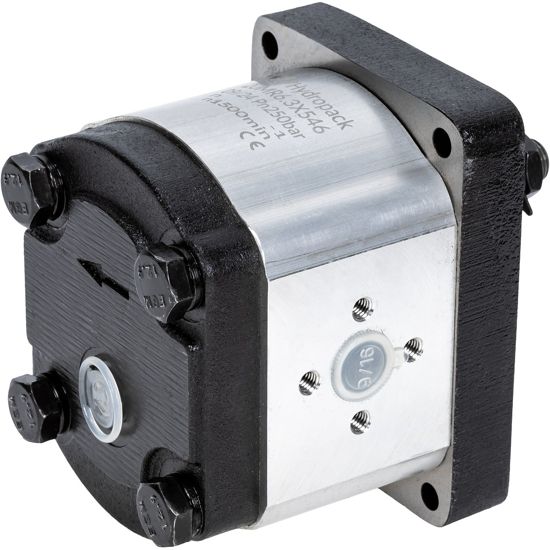

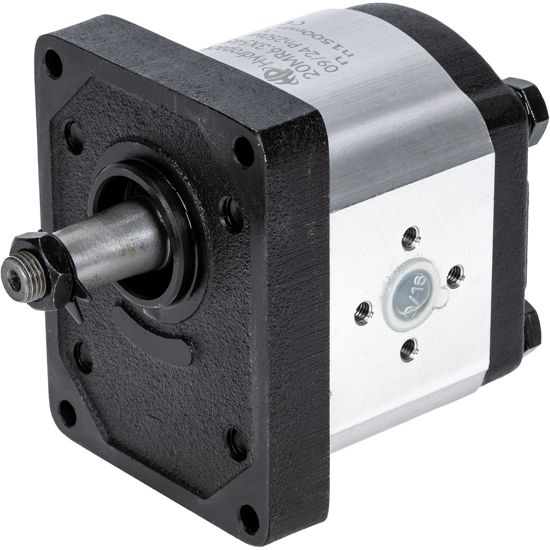

Gear motor 6,3cc 1/8 shaft

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHM2F6

  Manufacturer

  CharacteristicsSlagvolym: 6,3 cm³

  - 6,3 cm³ slagvolym, which betyder to a speed on 1000 rpm requires a flow on cirka 6,3 l/min
  - Rotationshastighet 650-3500 rpm
  - Working pressure 250 bar
  - Tapered shaft with kil 1:8
  - Monteringsfläns 71,4 x 96 mm, samma that for pumps in 2-the series
  - Connection pressure/tank E 30,2 mm / F 13,1 mm / d M6
  - Dräneringslinje G 1/4" at motorns baksida
