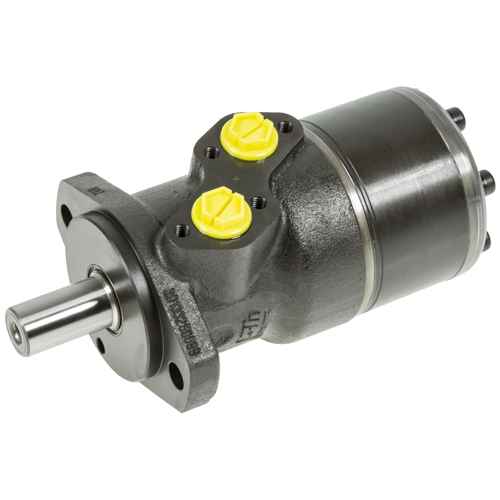

Hydraulic Motor 315 OMR

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMR315

  Manufacturer

  CharacteristicsAxle diameter 25 mm
  Displacement 315 cm³

  - 25 mm shaft with keyway
  - connections G 1/2"
  - drain connection G 1/4"
  - Danfoss OMR interchangeable
  - combines high torque with compact size
  - applications: for example, agricultural machinery, sand spreaders, hydraulic saws, slurry pumps
  - displacement 315 cm³/r
  - max. continuous speed 191 / intermittent 238 rpm
  - max. torque continuous 300 / intermittent 420 Nm
  - max. power continuous 5 / intermittent 6.6 kW
  - max. pressure continuous 175 / intermittent 200 / peak 225 bar
  - max. differential pressure continuous 70 / intermittent 100 / peak 210 bar
  - max. flow continuous 60 / intermittent 75 l/min

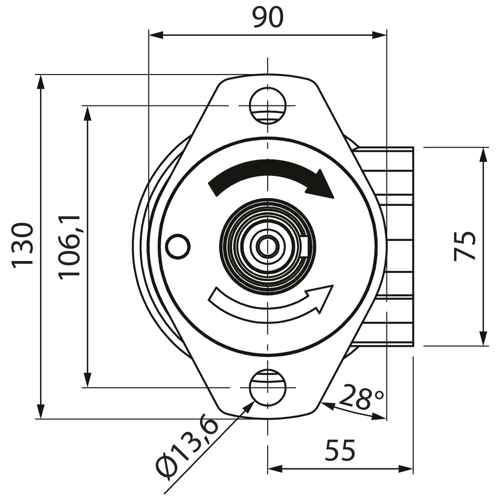

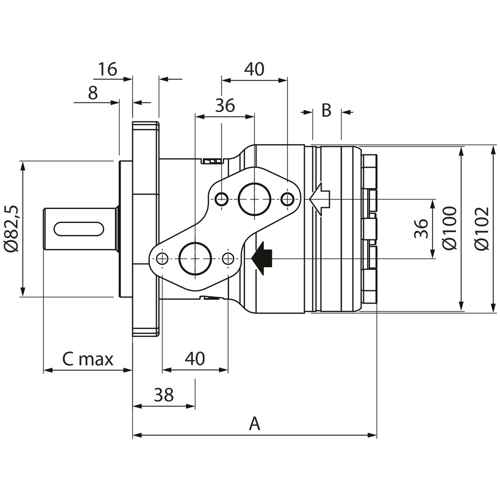

  - A 185.6 mm
  - B 54.8 mm
  - C 54 mm
  - weight 9.8 kg
