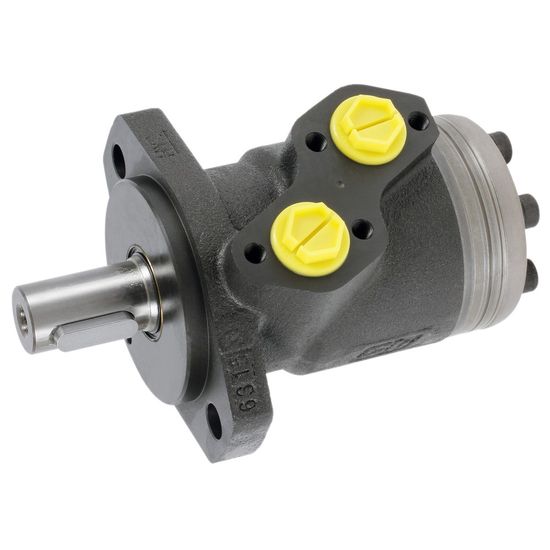

Hydraulic Motor Hmp 100

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMP100

  ManufacturerAGRILIFE

  CharacteristicsAxle diameter 25 mm
  Displacement 100.1 cm³

  - 25 mm shaft with woodruff keyway
  - connections G 1/2"
  - drain connection G 1/4"
  - Danfoss OMP interchangeable
  - combines high torque with compact size
  - applications: for example, agricultural machinery, sand spreaders, hydraulic saws, slurry pumps
  - displacement 100.1 cm³/rev
  - max. speed continuously 590 / intermittent 740 rpm
  - max. continuous torque 190 / intermittent 230 Nm
  - max. continuous power 10.5 / intermittent 13 kW
  - max. pressure continuously 165 / intermittent 200 / peak 225 bar
  - max. differential pressure continuously 140 / intermittent 175 / peak 225 bar
  - max. flow continuously 60 / intermittent 75 l/min

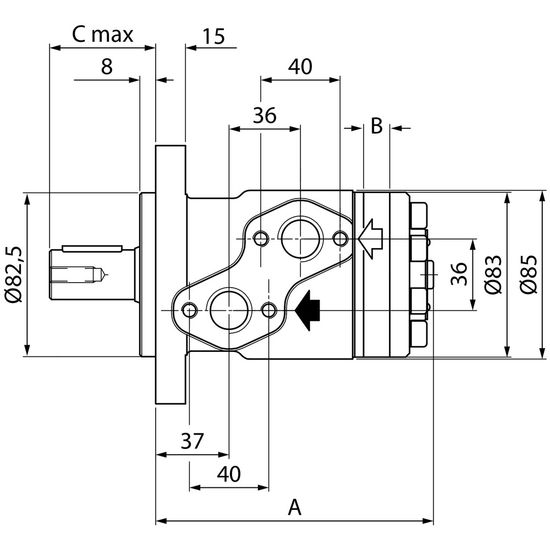

  - A 134.5 mm
  - B 13.3 mm
  - C 53.5 mm
  - weight 5.8 kg
