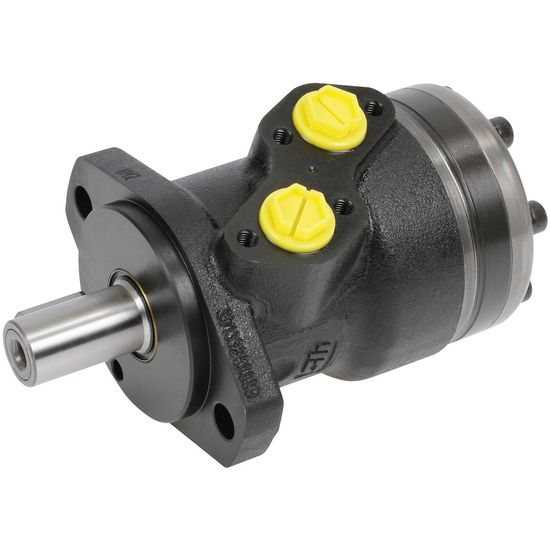

Hydraulic Motor Hmr 160

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMR160

  ManufacturerAGRILIFE

  CharacteristicsAxle diameter 25 mm
  Displacement 160 cm³

  - 25 mm shaft with woodruff keyway
  - connections G 1/2"
  - drain connection G 1/4"
  - Danfoss OMR interchangeable
  - combines high torque with compact size
  - applications: for example, agricultural machinery, sand spreaders, hydraulic saws, slurry pumps
  - displacement 160 cm³/rev
  - max. speed continuously 375 / intermittent 469 rpm
  - max. continuous torque 296 / intermittent 375 Nm
  - max. continuous power 10 / intermittent 12.5 kW
  - max. pressure continuously 175 / intermittent 200 / peak 225 bar
  - max. differential pressure continuously 140 / intermittent 175 / peak 225 bar
  - max. flow continuously 60 / intermittent 75 l/min

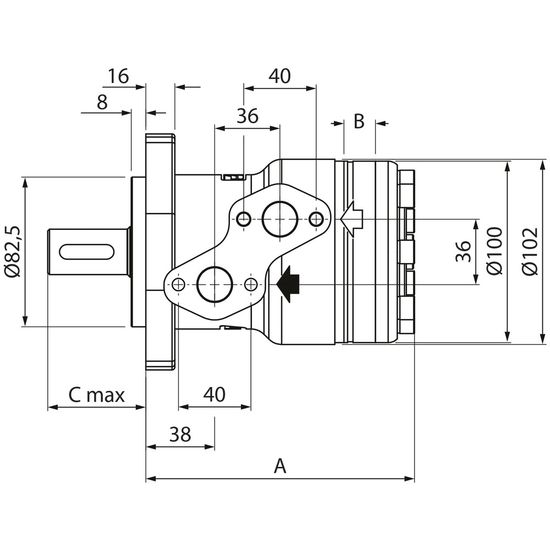

  - A 158.2 mm
  - B 27.8 mm
  - C 54 mm
  - weight 8.3 kg
