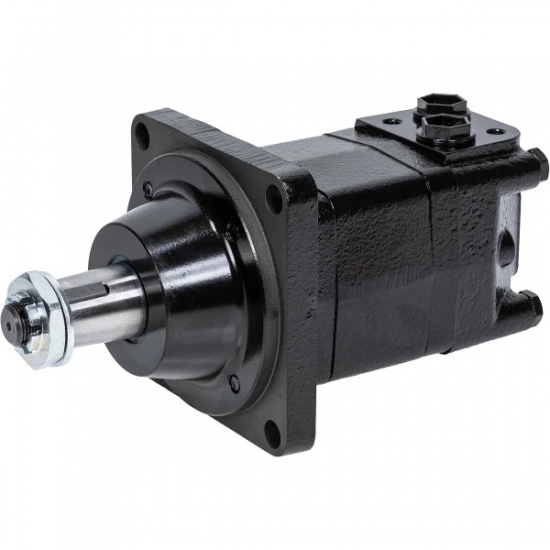

Orbit Motor MSY315 K 35mm Tapered Shaft

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMSYW315KLLP

  Manufacturer

  Characteristics

  - Reinforced gerotor motor for heavy-duty operation, handling approximately 15-20 % higher torque than the equivalent standard motor
  - Suitable, for example, for sand spreaders, drive motors for Avant loaders and screw conveyors
  - Interchangeable with, for example, Danfoss OMSW motors
  - 4-bolt hub mounting 4 x 160 mm
  - Connections G 1/2"
  - Drain connection G 1/4"
  - Disc valve
  - K 35 mm tapered shaft 1:10, key B6x6x20 DIN6885
  - Displacement 314,9 cm³/r
  - Rotation 240 / intermittent 285 rpm
  - Max. torque 90 / intermittent 100 daNm
  - Max. power 20,5 / intermittent 26 kW
  - Max. pressure continuous 210 / intermittent 250 / peak 300 bar
  - Max. flow continuous 75 / intermittent 90 l/min
  - Weight 12,9 kg
