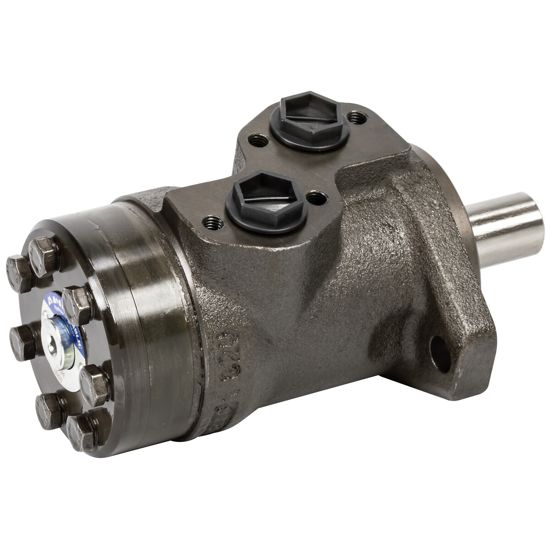

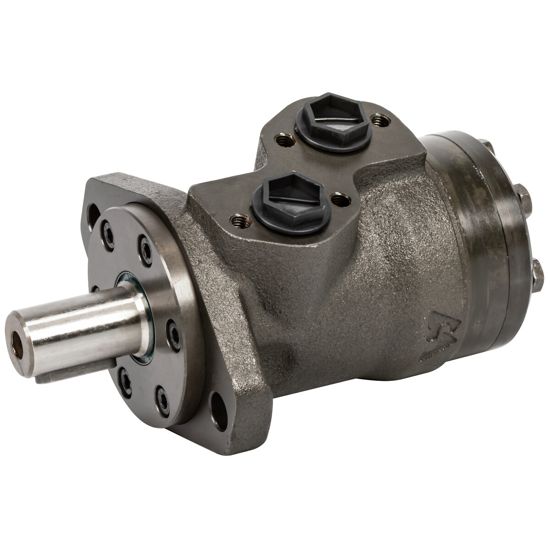

Orbital motor HMP 125

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMP125MS

  Manufacturer

  CharacteristicsAxeldiameter 25 mm
  Displacement 123,8 cm³

  - High-quality M+S Orbital motor, that is suitable for a brett spektrum of applications, e.g. jordbruksmachines, sandspridare, cirkelsågar, uppslamningspumps, transportörer etc.
  - Kombinerar hög torque with kompakt size
  - Danfoss OMP replaceable
  - 25 mm shaft with keyway, kil A8x7x32 DIN 6885
  - Connectionar G 1/2"
  - Connection, dränering G 1/4"
  - Displacement 123,8 cm³/r
  - Max. speed continuous 486 / intermittent 605 rpm
  - Min. speed 10 rpm
  - Max. torque continuous 237 / intermittent 298 Nm
  - Max. power continuous 10,2 / intermittent 12 kW
  - Max. pressure continuous 165 / intermittent 200 / peak 225 bar
  - Max. differentialtryck continuous 140 / intermittent 175 / peak 225 bar
  - Max. flow continuous 60 / intermittent 75 l/min
  - A 145,5 mm
  - B 16,67 mm
  - C 55 mm
  - Weight 6,2 kg
