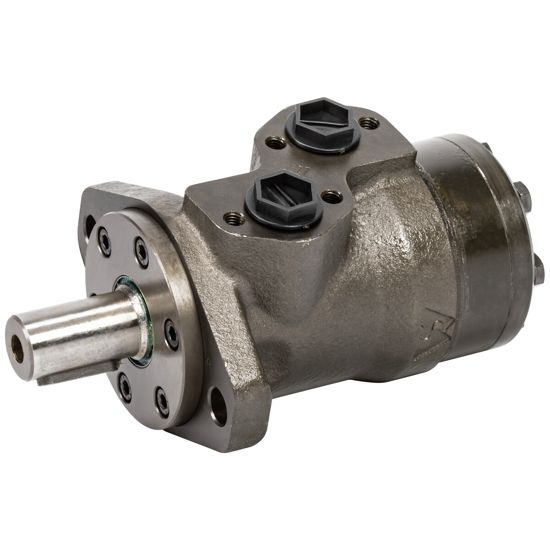

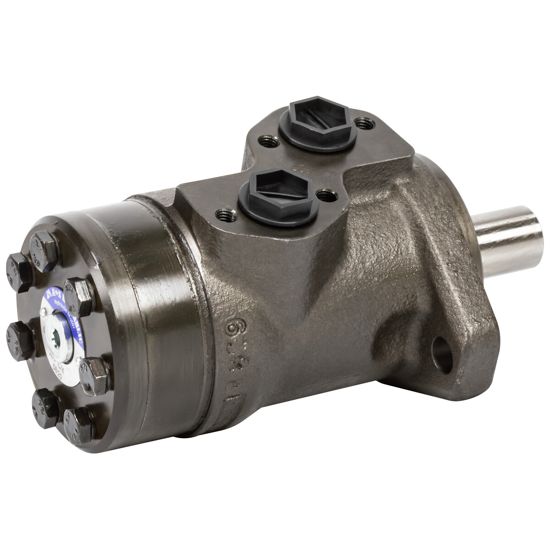

Orbital motor HMP 160

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMP160MS

  Manufacturer

  CharacteristicsAxeldiameter 25 mm
  Displacement 158,4 cm³

  - High-quality M+S Orbital motor, that is suitable for a brett spektrum of applications, e.g. jordbruksmachines, sandspridare, cirkelsågar, uppslamningspumps, transportörer etc.
  - Kombinerar hög torque with kompakt size
  - Danfoss OMP replaceable
  - 25 mm shaft with keyway, kil A8x7x32 DIN 6885
  - Connectionar G 1/2"
  - Connection, dränering G 1/4"
  - Displacement 158,4 cm³/r
  - Max. speed continuous 378 / intermittent 472 rpm
  - Min. speed 10 rpm
  - Max. torque continuous 313 / intermittent 378 Nm
  - Max. power continuous 10,1 / intermittent 12,1 kW
  - Max. pressure continuous 165 / intermittent 200 / peak 225 bar
  - Max. differentialtryck continuous 140 / intermittent 175 / peak 225 bar
  - Max. flow continuous 60 / intermittent 75 l/min
  - A 150 mm
  - B 21,3 mm
  - C 55 mm
  - Weight 6,4 kg
