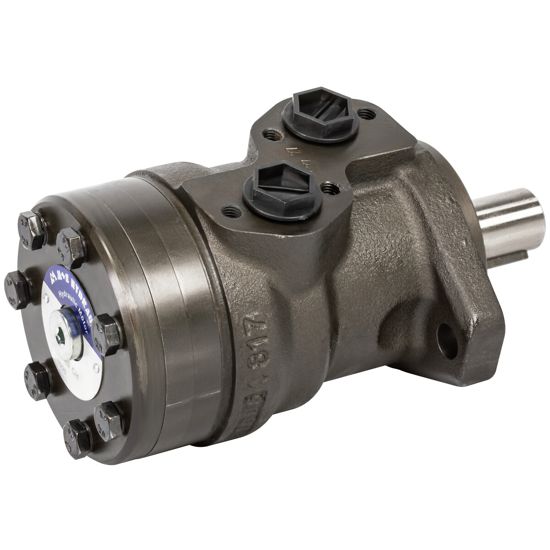

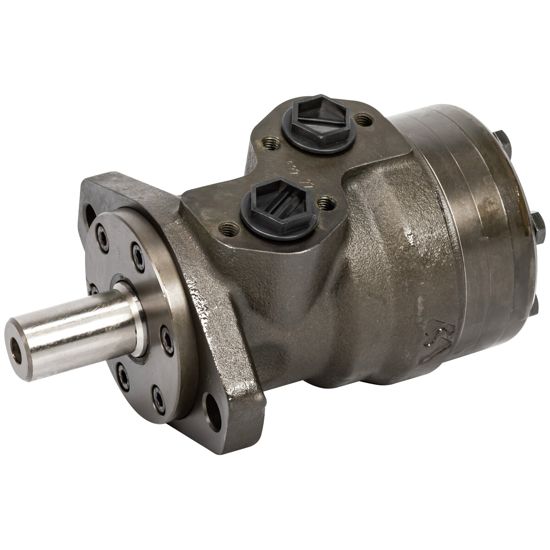

Orbital motor HMR 125

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMR125MS

  Manufacturer

  CharacteristicsAxeldiameter 25 mm
  Displacement 125,7 cm³

  - High-quality M+S Orbital motor, that is suitable for a brett spektrum of applications, e.g. jordbruksmachines, sandspridare, cirkelsågar, uppslamningspumps, transportörer etc.
  - MR-modellen is a more avancerad version that erbjuder well tryckmotstånd and högre powerivitet
  - Kombinerar hög torque with kompakt size
  - Danfoss OMR replaceable
  - 25 mm shaft with keyway, kil A8x7x32 DIN6885
  - Connectionar G 1/2"
  - Connection, dränering G 1/4"
  - Displacement 125,7 cm³/r
  - Max. speed continuous 475 / intermittent 600 rpm
  - Max. torque continuous 300 / intermittent 340 Nm
  - Max. power continuous 12,5 / intermittent 14,5 kW
  - Max. pressure continuous 175 / intermittent 200 / peak 225 bar
  - Max. flow continuous 60 / intermittent 75 l/min
  - A 150,5 mm
  - B 21,8 mm
  - C 54 mm
  - Weight 7,3 kg
