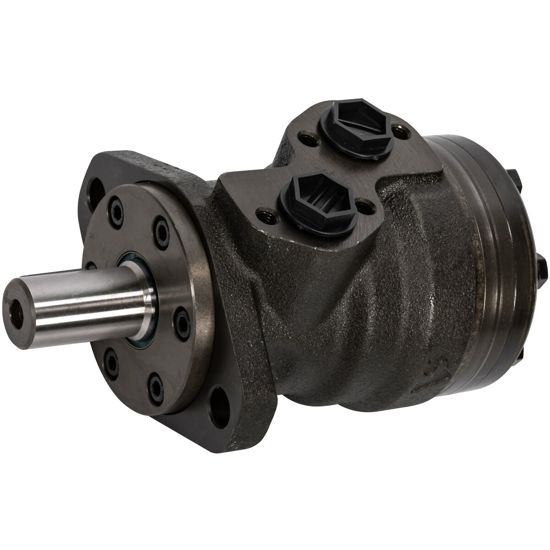

Orbital motor HMR 80

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMR080

  Manufacturer

  CharacteristicsAxeldiameter 25 mm
  Displacement 80,3 cm³

  - 25 mm shaft with keyway, kil A8x7x32 DIN6885
  - Connectionar G 1/2"
  - Connection, dränering G 1/4"
  - Danfoss OMR replaceable
  - Kombinerar hög torque with kompakt size
  - Usesområden: for example jordbruksmachines, sandspridare, hydrauligsågar, slurrypumps
  - Displacement 80,3 cm³/r
  - Max. speed continuous 750 / intermittent 940 rpm
  - Max. torque continuous 200 / intermittent 270 Nm
  - Max. power continuous 12,5 / intermittent 15 kW
  - Max. pressure continuous 175 / intermittent 200 / peak 225 bar
  - Max. differentialtryck continuous 70 / intermittent 100 / peak 210 bar
  - Max. flow continuous 60 / intermittent 75 l/min

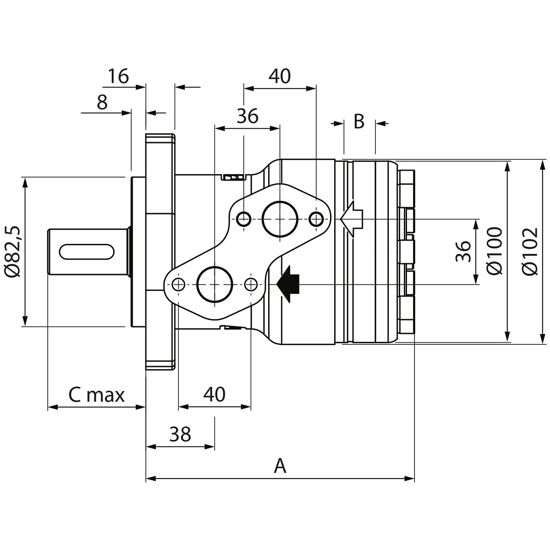

  - A 143 mm
  - C 51,3 mm
  - Weight 6,9 kg
