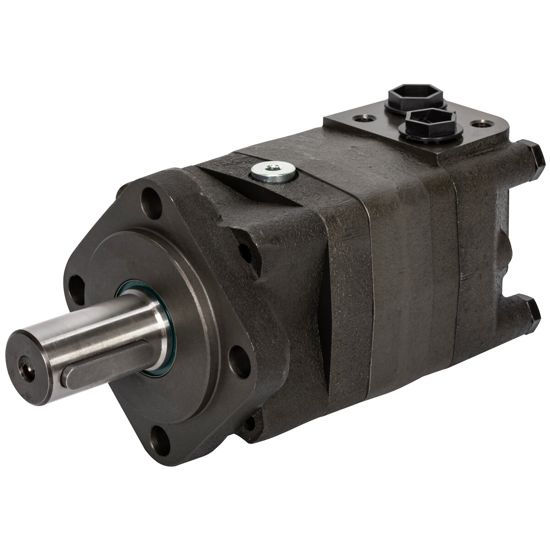

Orbital motor HMSY200

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMSY200

  Manufacturer

  CharacteristicsAxeldiameter 32 mm
  Displacement 200 cm³

  - Reinforced and kraftig motor that tål 15-20% more torque än a vanlig motor
  - Applications såsom sopmachines and borstmachines
  - Replaceablet with e.g. Danfoss 151F0504
  - SAE A-4-montering with 4 bultar
  - Connectionar G 1/2"
  - Connection, dränering G 1/4"
  - Frånluftsdon (disc valve)
  - C-shaft 32 mm with keyway, A10x8x45 DIN 6885
  - Displacement 200 cm³/r
  - Speed 375 (450 rpm)
  - Max torque 56 daNm (omedelbart 64 daNm)
  - Max. pressure continuous 210 / intermittent 250 / peak 300 bar
  - Max. flow continuous 75 / intermittent 90 l/min
  - Weight 11,2 kg
