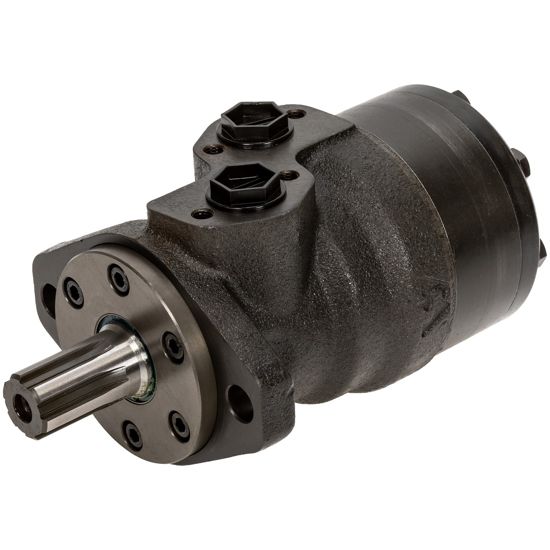

Orbital motor MR160 SH SAE6B 1" shaft

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMR160SH

  Manufacturer

  CharacteristicsAxeldiameter 25,32 mm
  Displacement 160 cm³

  - High-quality M+S Orbital motor, that is suitable for a brett spektrum of applications, e.g. jordbruksmachines, sandspridare, cirkelsågar, uppslamningspumps, transportörer etc.
  - MR-modellen is a more avancerad version that erbjuder well tryckmotstånd and högre powerivitet
  - Kombinerar hög torque with kompakt size
  - Danfoss OMR replaceable
  - 25,32 mm shaft, 6-spår, BS 2059 (SAE 6B)
  - Connectionar G 1/2"
  - Connection, dränering G 1/4"
  - Displacement 160 cm³/r
  - Max. speed continuous 375 / intermittent 470 rpm
  - Max. torque continuous 390 / intermittent 430 Nm
  - Max. power continuous 11,5 / intermittent 14 kW
  - Max. pressure continuous 175 / intermittent 200 / peak 225 bar
  - Max. flow continuous 60 / intermittent 75 l/min
  - A 162,5 mm
  - B 21,3 mm
  - C 55 mm
  - Weight 7,6 kg
