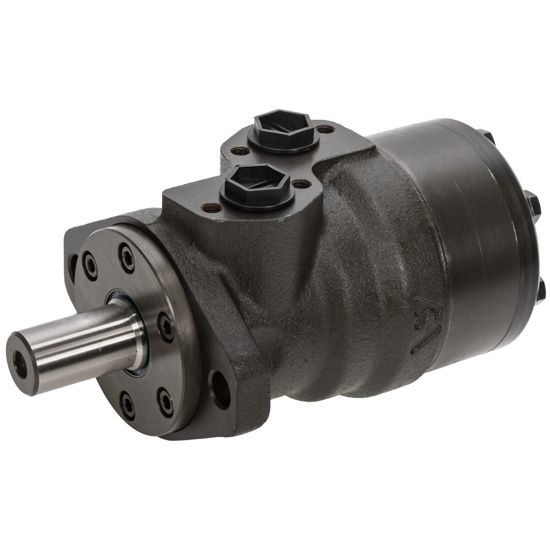

Orbital motor MR200 CO 1" keyway shaft

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMR200CO

  Manufacturer

  CharacteristicsAxeldiameter 25,4 mm
  Displacement 199,8 cm³

  - High-quality M+S Orbital motor, that is suitable for a brett spektrum of applications, e.g. jordbruksmachines, sandspridare, cirkelsågar, uppslamningspumps, transportörer etc.
  - MR-modellen is a more avancerad version that erbjuder well tryckmotstånd and högre powerivitet
  - Kombinerar hög torque with kompakt size
  - Danfoss OMR replaceable
  - 1" shaft with keyway, kil 1/4x1/4/1.1/4 BS46
  - Connectionar G 1/2"
  - Connection, dränering G 1/4"
  - Displacement 199,8 cm³/r
  - Max. speed continuous 300 / intermittent 375 rpm
  - Max. torque continuous 380 / intermittent 460 Nm
  - Max. power continuous 9 / intermittent 12 kW
  - Max. pressure continuous 175 / intermittent 200 / peak 225 bar
  - Max. flow continuous 60 / intermittent 75 l/min
  - A 163,5 mm
  - B 34,8 mm
  - C 55 mm
  - Weight 8,0 kg
