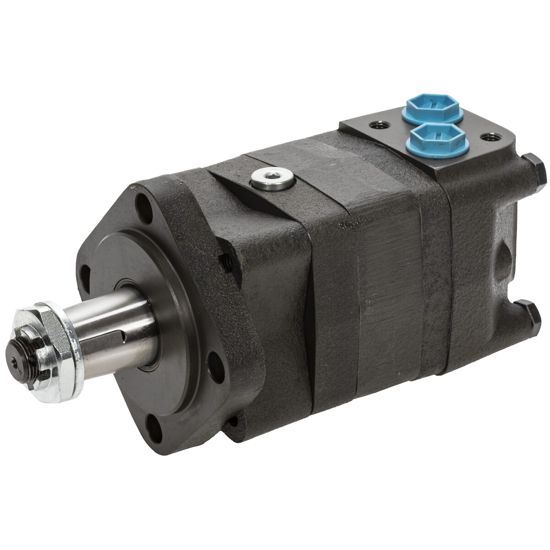

Orbital motor MSY200 K 35mm tapered shaft

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHMSY200K

  Manufacturer

  CharacteristicsAxeldiameter 35 mm
  Displacement 200 cm³

  - Reinforced and kraftig motor that tål 15-20% more torque än a vanlig motor
  - Applications såsom sop- And borstmachines
  - Replaceablet with e.g. Danfoss 151F2211
  - SAE A-4-montering with 4 bultar
  - Connectionar G 1/2"
  - Connection, dränering G 1/4"
  - Frånluftsdon (disc valve)
  - K 35 mm tapered shaft 1:10, kil B6x6x20 DIN6885
  - Displacement 200 cm³/r
  - Rotation 375 / intermittent 450 rpm
  - Max. torque 56 / intermittent 64 daNm
  - Max. pressure continuous 210 / intermittent 250 / peak 300 bar
  - Max. flow continuous 75 / intermittent 90 l/min
  - Weight 11,2 kg
